python masonry retrofit plates

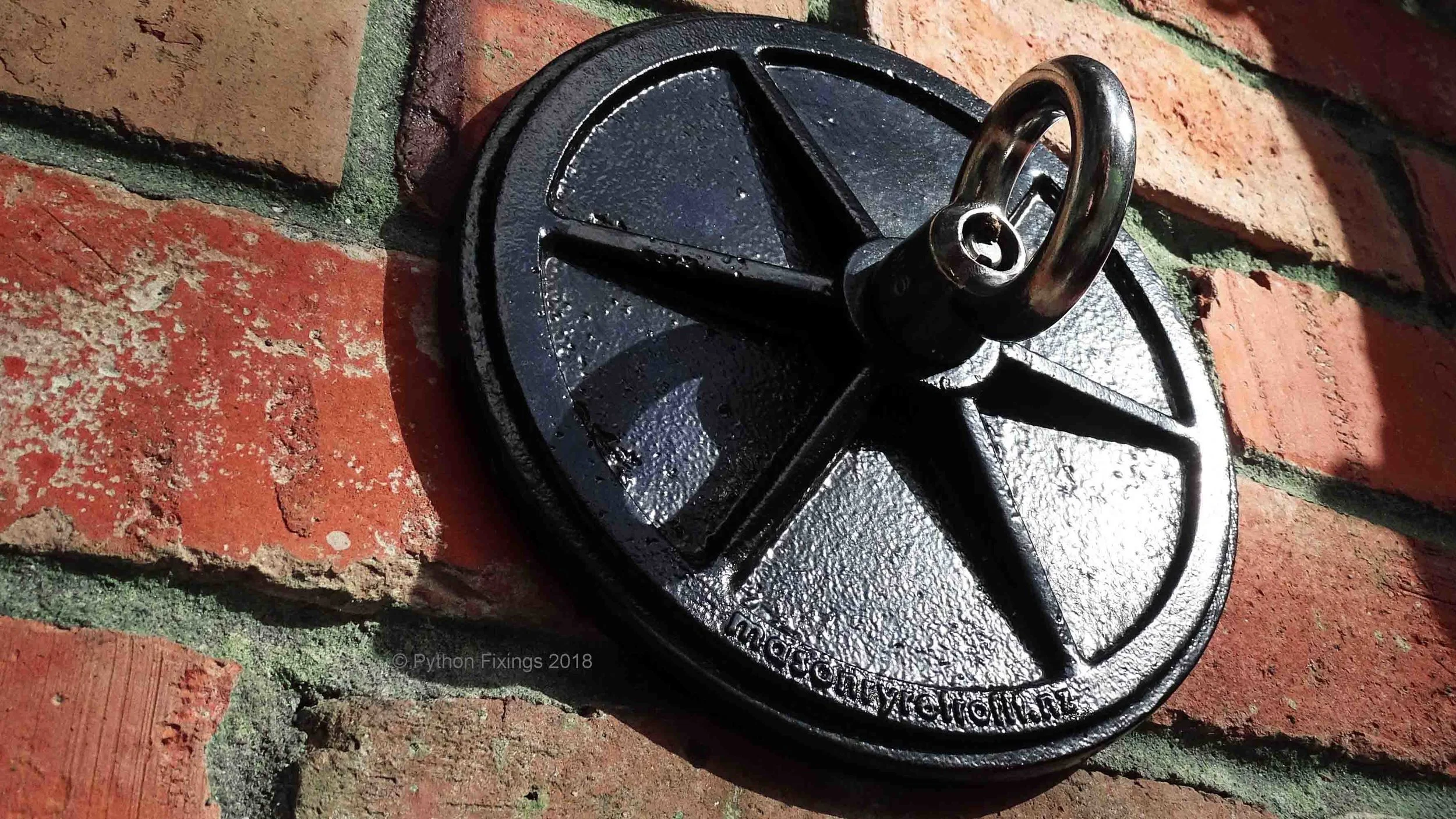

STARFISH PLATES

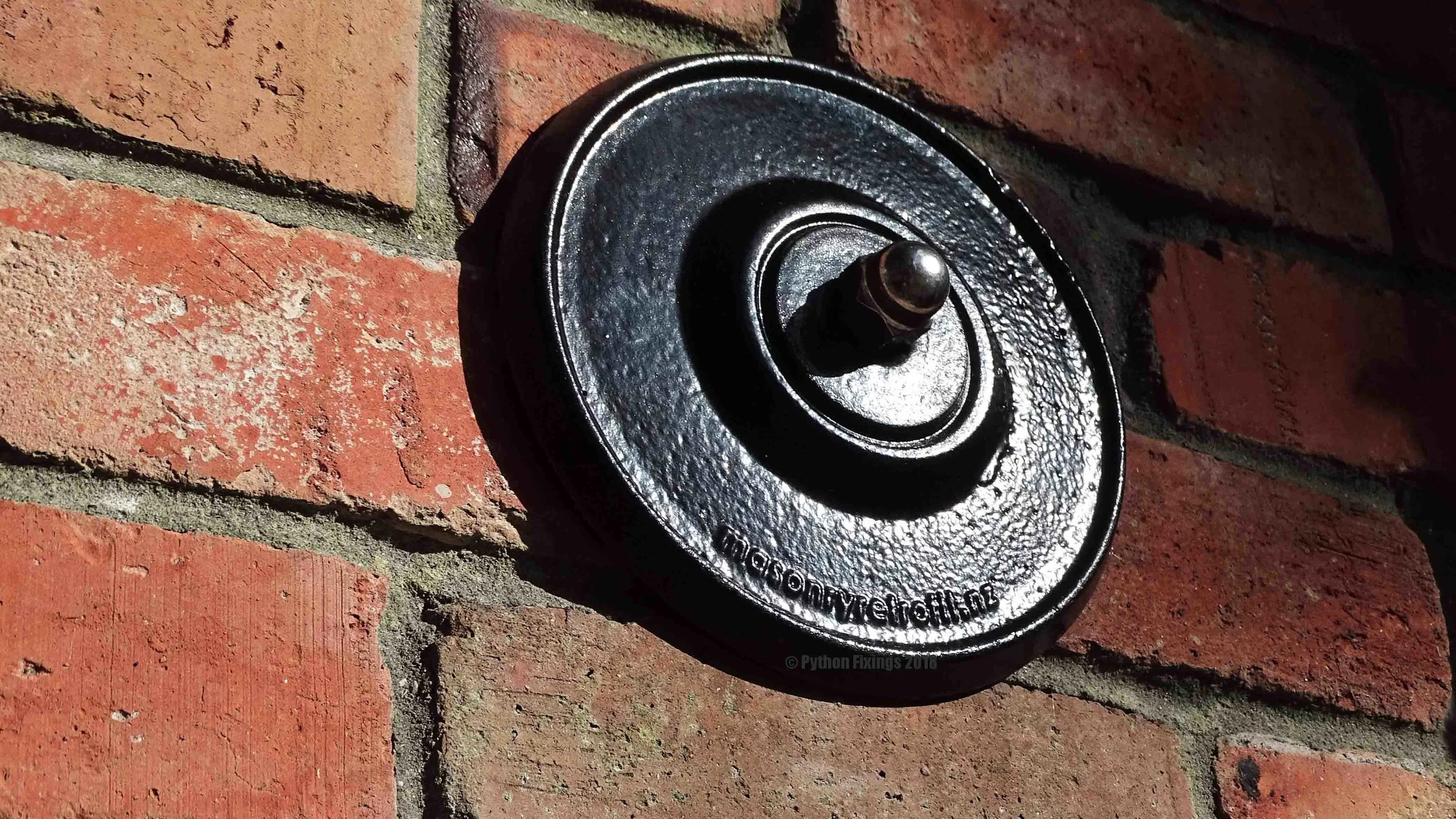

BULLS EYE PLATES

Browse our beautiful most requested designs

Effective wall-to-floor/roof connections significantly improves the global earthquake behaviour of masonry buildings. External anchor plates (aka pattress plates) that connect to the internal floor/roof structure is the most robust and cost-effective solution.

PYTHON MASONRY RETROFIT PLATES matured from our passion on the conservation and earthquake protection of existing buildings as valuable and concrete memory of our history and of our forefathers. PYTHON MASONRY RETROFIT PLATES bring our people to experience the tradition of old European buildings where the use of anchor plates withstood the test of time and of multiple earthquakes. We revisited such tradition with designs that best fit our New-World existing buildings.

Technical(bROCHURE)

  • Plates measure 200 mm diameter with 22 mm center hole

  • Matt black high quality finish to enhance durability

  • Cast using ductile iron grade 500-7 (AS) combining strength and ductility

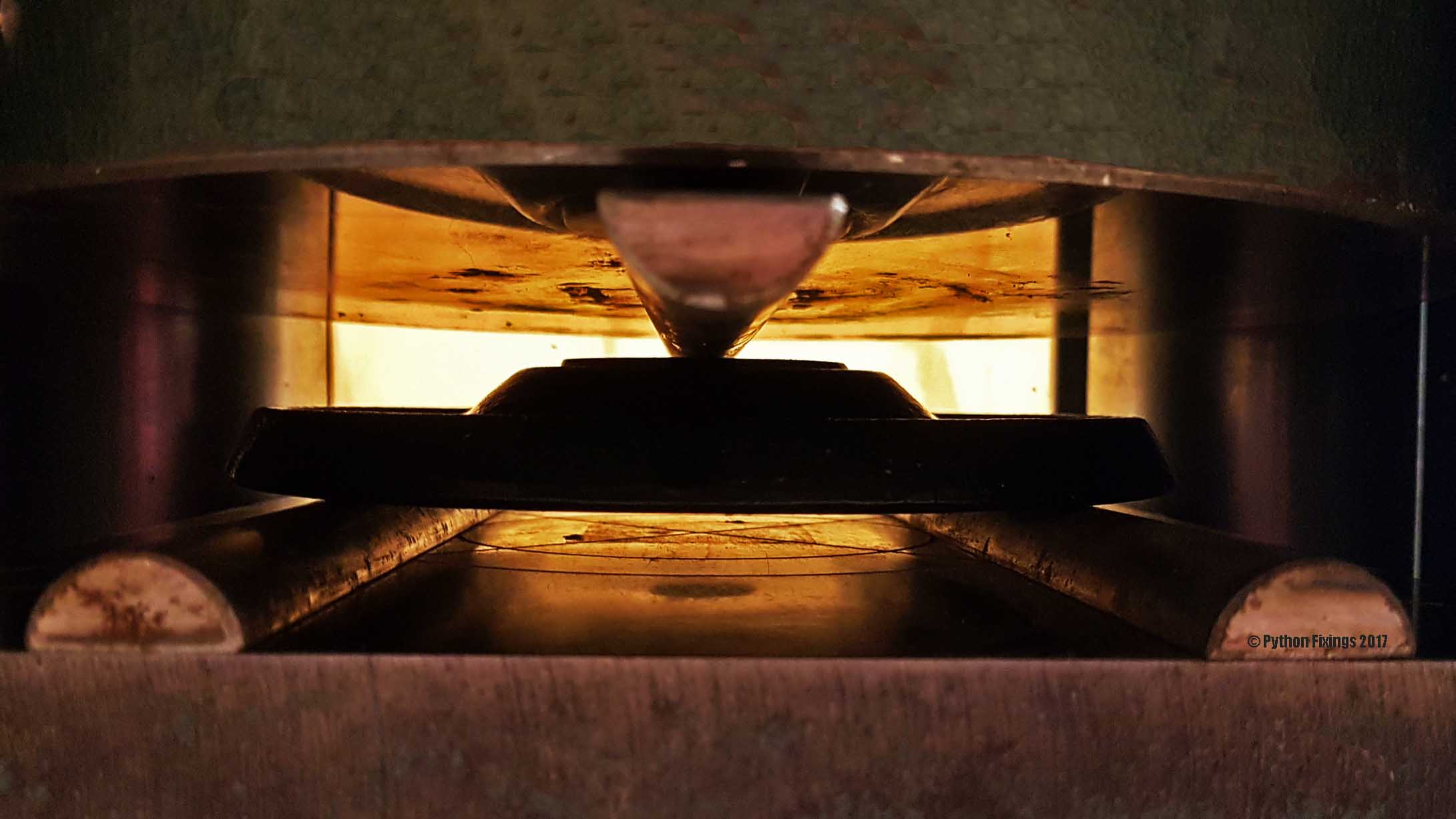

  • Three way plate bending capacity is in excess of 250 kN, well above any application

  • Pull-out capacity can be calculated in accordance with C8.8.4.3 Plate anchors (section C8 of NZSEE Guidelines, 2017)

  • Download our brochure

Applications

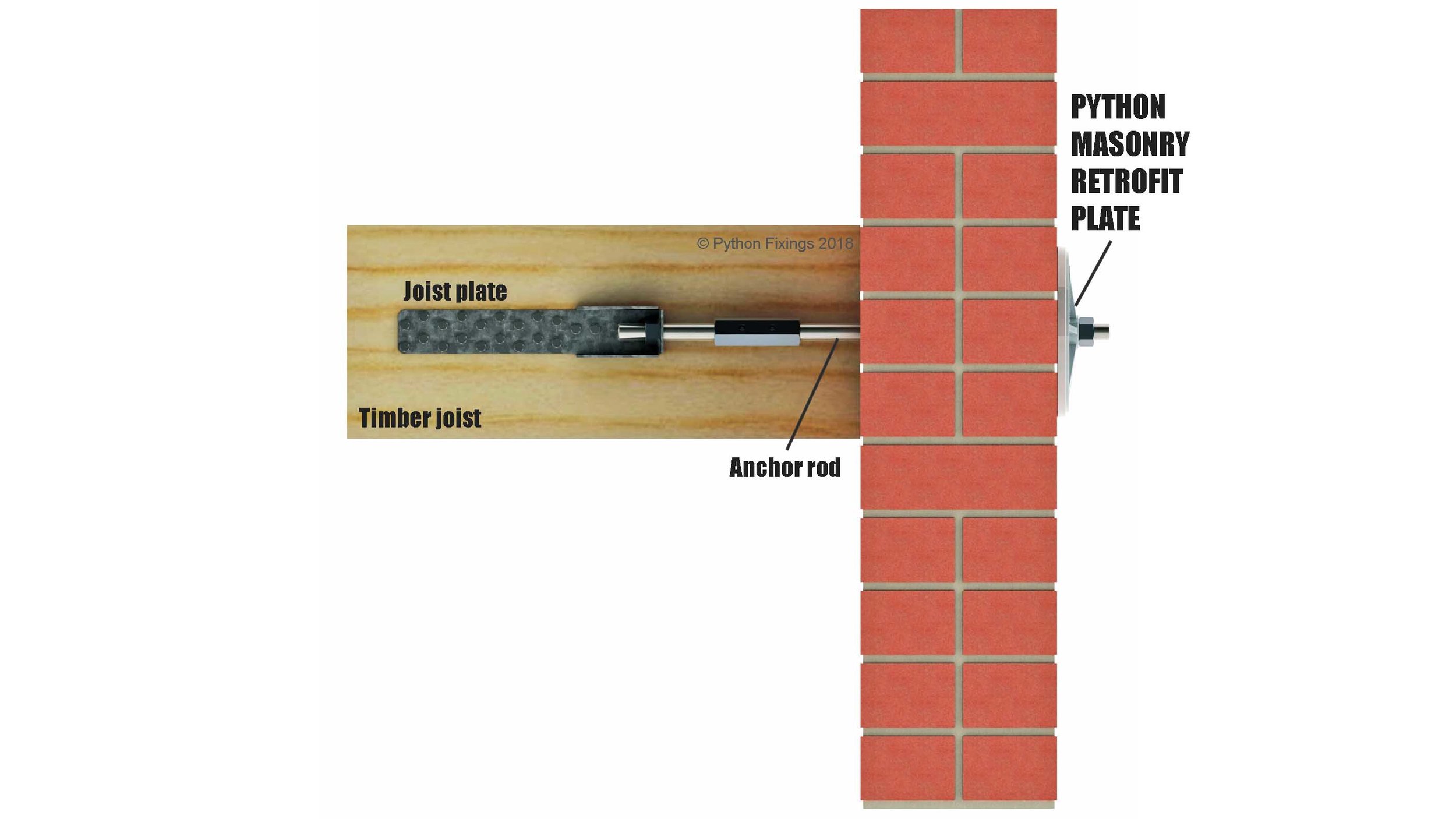

  • Robust connection between wall and floor/roof members

  • Wall-to-wall cross-tie rods

  • Securing canopy to masonry wall

  • Combination of decorative and structural design

CALL US NOW FOR YOUR NEXT PROJECT

  • We can advise on structural details and design

  • We can supply joist straps, wall ties, tie rods and turnbuckles for the complete package to secure unstable walls

  • We stock a variety of ornamental plate anchor designs that fit well with your building character
